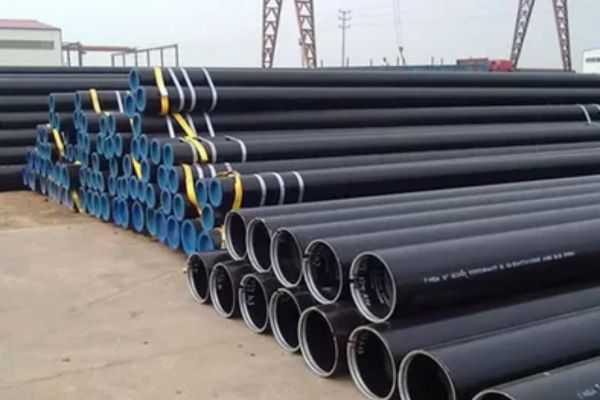

Chetan Steel is a manufacturer and supplier operating from Delhi, India that provides some of the best carbon steel products. Strongly well-known for the product’s excellence, Chetan Steel has provided durable Carbon Steel BS3603 Pipe widely in industrial applications for transporting fluids and gases. According to the British Standard 3603, the company’s pipes provide excellent strength, corrosion resistance, and high performance. Chetan Steel ensures on-time delivery, excellent customer service, and lowest prices as the most trusted partnership in the steel manufacturing industry.
The Carbon Steel BS3603 Pipe consists almost entirely of carbon, manganese, and small impurities like phosphorus and sulfur. Carbon constitutes about 0.12 percent to 0.20 percent in order to balance the yield strength with enough flexibility. Other mechanical properties exhibited are tensile strength of as much as 500 MPa, yield strength at approximately 250 MPa, and around 25 % elongation percentage. It’s very weldable, formable, and durable with a tendency not to readily corrode nor wear off. These properties make the material ideal for high-pressure and high-temperature applications, thereby providing reliability and durability in industrial environments.
| Dimensions | ASTM, ASME and API |
| Thickness | 50mm to 7.00mm, custom OD and thickness available on request |
| End | Plain End, Beveled End, Treaded |
| Length | Single Random, Double Random & Required Length, Custom Size – according to customer’s requirement |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Types | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter | 19.05mm to 127mm |
| Wall Thickness | 0.8mm to 6.0mm |
| Length | 6mtr/ 12mtr or Cut to Length |
| Capacity | 7000 Mt/Month |
Grade | Mfg. Process | Chemical Composition(%) | ||||||||
C | Si | Mn | P | S | Ni | Cr | Mo | Others | ||
BW320 | B | 0.16Max | – | 0.30~0.70 | 0.040Max | 0.040Max | – | – | – | – |
ERW320 | E | 0.16Max | – | 0.30~0.70 | 0.040Max | 0.040Max | – | – | – | – |
ERW360 | E | 0.17Max | 0.35Max | 0.40~0.80 | 0.040Max | 0.050Max | – | – | – | – |
ERW430 | E | 0.21Max | 0.35Max | 0.40~1.20 | 0.040Max | 0.040Max | – | – | – | – |
S360 | S | 0.17Max | 0.35Max | 0.40~0.80 | 0.040Max | 0.040Max | – | – | – | t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
S430 | S | 0.21Max | 0.35Max | 0.40~1.20 | 0.040Max | 0.040Max | – | – | – | t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
SAW430 | A | 0.25Max | 0.50Max | 1.20Max | 0.040Max | 0.040Max | – | – | – | t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
Grade
| Tensile Test MPa or N/mm2 | Remaks (Similar to JIS) | Possibility Temperature | |
Min Yield point | Tensile Strength | |||
BW320 | 195 | 320~460 | – | |
ERW320 | 195 | 320~460 | – | |
ERW360 | 235 | 360~500 | (STPG370) | |
ERW430 | 195 | 430~570 | (STPG410) | |
S360 | 235 225 215 | 360~550 | (STPG310) | |
S430 | 275 265 255 | 430~570 | (STPG410) | |
SAW430 | 275 265 255 | 430~570 | (STPY400) | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chetan Steel is one of the major manufacturers and exporters of Carbon Steel BS3603 Pipes in Delhi, India. We have a variety of steel solutions: Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product portfolio ranges from Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. We are highly regarded for reliability and excellent service, committed to offering superior-quality steel products well suited for critical industrial applications; these are very durable and therefore guarantee optimal performance. Chetan Steel is a company you can count on regarding your Carbon Steel BS3603 Pipe needs.
Carbon Steel BS 3603 pipes are widely applied in various industries owing to strength, durability, and resistance against corrosion. High pressure and temperature environment applications for example boilers, heat exchanger, and pressure vessel are used frequently. For oil and gas, petrochemical, power generation, and marine industries to carry fluids, gases, or steam, Carbon Steel BS 3603 Pipes play a major role. Additionally, they are used in structural applications, mechanical systems and piping networks, which require excellent weldability and formability. This stock pipe is a robust structure that complies with British Standard 3603, so they have reliability and long service life in critical industrial operations.
