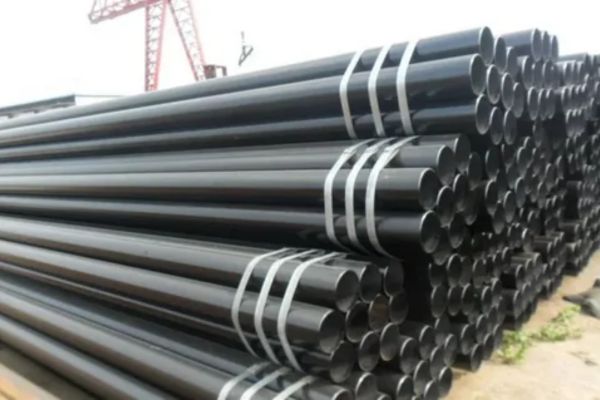

Chetan Steel is the leading manufacturers and suppliers of superior quality carbon steel products in Delhi, India. Carbon Steel BS3606 Pipes Known for its long life and toughness, Chetan Steel produces excellent quality corrosion resistance pipes for different industrial uses such as boilers and heat exchangers, assuring best possible performance. Chetan Steel offers precision engineering and top-grade material-complied products that meet international standards, solidifying the position of an industry leader when robust, efficient piping solutions are called for.
Carbon steel BS 3606 is widely used for heat exchanger and boiler tubes due to good mechanical properties as well as for its durability. The chemical composition of the steel pipes mainly includes iron with some percentage of carbon, ranging between 0.12% to 0.35%, manganese, silicon, sulfur, and phosphorus, in trace quantities. They have tensile strength ≥ 360 MPa, good ductility, and impact resistance. BS3606 pipes havCarbon steel BS 3606 is widely used for heat exchanger and boiler tubes due to good mechanical properties as well as for its durability. The chemical composition of the steel pipes mainly includes iron with some percentage of carbon, ranging between 0.12% to 0.35%, manganese, silicon, sulfur, and phosphorus, in trace quantities.
| Dimensions | ASTM, ASME and API |
| Thickness | 50mm to 7.00mm, custom OD and thickness available on request |
| End | Plain End, Beveled End, Treaded |
| Length | Single Random, Double Random & Required Length, Custom Size – according to customer’s requirement |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Types | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter | 19.05mm to 127mm |
| Wall Thickness | 0.8mm to 6.0mm |
| Length | 6mtr/ 12mtr or Cut to Length |
| Capacity | 7000 Mt/Month |
|
Grade |
Mfg. Process |
Chemical Composition(%) | ||||||||
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
Mo |
Others |
||
|
BW320 |
B |
0.16Max |
– |
0.30~0.70 |
0.040Max |
0.040Max |
– |
– |
– |
– |
|
ERW320 |
E |
0.16Max |
– |
0.30~0.70 |
0.040Max |
0.040Max |
– |
– |
– |
– |
|
ERW360 |
E |
0.17Max |
0.35Max |
0.40~0.80 |
0.040Max |
0.050Max |
– |
– |
– |
– |
|
ERW430 |
E |
0.21Max |
0.35Max |
0.40~1.20 |
0.040Max |
0.040Max |
– |
– |
– |
– |
|
S360 |
S |
0.17Max |
0.35Max |
0.40~0.80 |
0.040Max |
0.040Max |
– |
– |
– |
t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
|
S430 |
S |
0.21Max |
0.35Max |
0.40~1.20 |
0.040Max |
0.040Max |
– |
– |
– |
t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
|
SAW430 |
A |
0.25Max |
0.50Max |
1.20Max |
0.040Max |
0.040Max |
– |
– |
– |
t 16mmMax 16mm<t 40mmMAX 40mm<t 65mmMax |
Grade
| Tensile Test MPa or N/mm2 | Remaks (Similar to JIS) | Possibility Temperature | |
Min Yield point | Tensile Strength | |||
BW320 | 195 | 320~460 | – | |
ERW320 | 195 | 320~460 | – | |
ERW360 | 235 | 360~500 | (STPG370) | |
ERW430 | 195 | 430~570 | (STPG410) | |
S360 | 235 225 215 | 360~550 | (STPG310) | |
S430 | 275 265 255 | 430~570 | (STPG410) | |
SAW430 | 275 265 255 | 430~570 | (STPY400) | |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Outer Diameter (OD) | Wall Thickness (WT) | Length |
|---|---|---|
| 6mm – 25mm | 1mm – 3mm | Up to 6 meters |
| 26mm – 50mm | 3mm – 6mm | Up to 9 meters |
| 51mm – 150mm | 6mm – 12mm | Up to 12 meters |
| 151mm – 300mm | 12mm – 25mm | Customizable |
| 301mm – 508mm | 25mm – 50mm | Customizable |
Chetan Steel is a leading manufacturer and exporter of Carbon Steel BS3606 Pipes in Delhi, India. We offer a vast array of steel solutions, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse product portfolio includes pipes, tubes, flanges, pipe fittings, forged fittings, sheets, and plates. We are the most trusted name for supplying critical industrial applications with superior-quality steel products, built on reliability and excellent service. Our BS3606 Pipes are hard-wearing and high-performance-efficient. Chetan Steel is here to fulfill all your Carbon Steel BS3606 Pipe requirements.
Carbon Steel BS3606 pipes are used extensively in most industrial operations due to their strength, toughness, and resistance to thermal properties. These are very often utilized in the heat exchangers and condensers of power plants and boiler and superheaters of refineries. They also find extensive usage in chemical processing, petrochemical, and oil & gas industries in fluid and gas transportation at high pressure and temperature conditions. Also used in marine application, automotive and construction, such as structural application, their exceptional weldability as well as the machinability makes them one of the favorable materials for use in fabrication applications and custom-engineered solutions guaranteeing reliability, especially under hard operational conditions.
