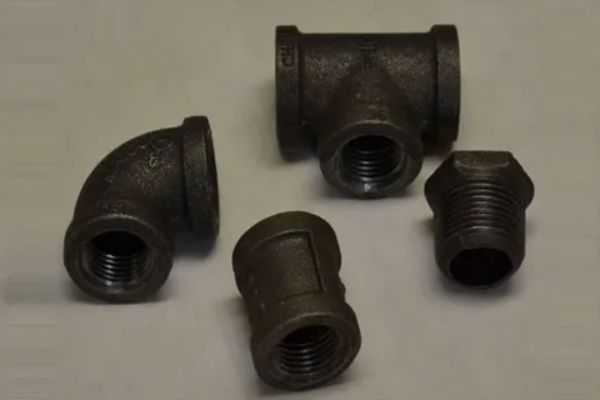

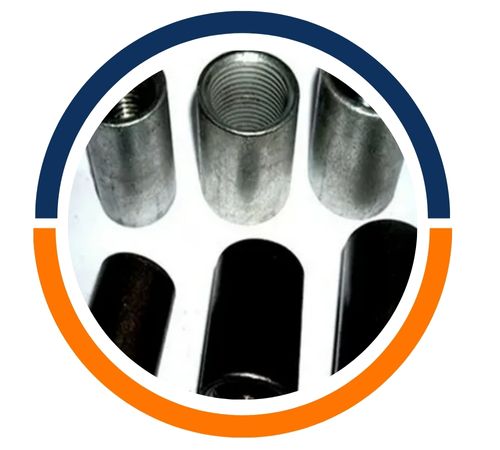

Chetan Steel is a Delhi-based manufacturer and supplier known for delivering dependable forged steel solutions for industrial piping systems. With a strong emphasis on quality, precision, and international standards, the company supports projects that demand reliability and long service life. Carbon Steel F42 Forged Fittings are designed for low- to moderate-pressure applications where strength, accurate dimensions, and secure connections are essential. Manufactured using advanced forging techniques and strict quality control processes, these fittings provide excellent durability and performance for a wide range of industrial and infrastructure requirements.
Carbon Steel F42 Forged Fittings are produced from high-quality carbon steel with a controlled chemical composition to achieve balanced yield strength, tensile strength, and toughness. The forging process improves internal grain flow, enhancing mechanical performance and resistance to deformation. These fittings offer reliable pressure-handling capability, dimensional stability, and consistent performance under standard operating conditions, ensuring safe and long-lasting service in piping systems.
Standard : ASTM A694 / ASME SA 694
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F42 | 0.13-0.20 | 0.20-0.40 | 1.20-1.60 | ≤ 0.030 | ≤ 0.020 | – | ≤ 0.30 | ≤ 0.30 | ≤ 0.25 | – | – |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 42 | 60 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F42 Forged Screwed Elbows, Street Elbow, Carbon Steel F42 Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F42 Reducing Coupling, Carbon Steel F42 Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F42 Threaded Bushing, Carbon Steel F42 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F42 Barrel Nipples, CS F42 Forged Threaded Boss, Carbon Steel F42 Forged Hex Head Bull Plugs |
| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F42 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS F42 caps, 3000LB Socket Weld Cross |
| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS F42 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F42 Coupling |
Carbon Steel F42 Forged Fittings are widely used in oil and gas pipelines, water supply networks, petrochemical plants, power generation facilities, and general industrial piping systems. Typical applications include elbows, tees, couplings, and reducers used to connect, branch, or redirect flow. These fittings provide secure joints, smooth flow transitions, and dependable sealing. Preferred by engineers and contractors, Carbon Steel F42 Forged Fittings deliver durability, efficiency, and cost-effectiveness for projects requiring reliable piping connections.
