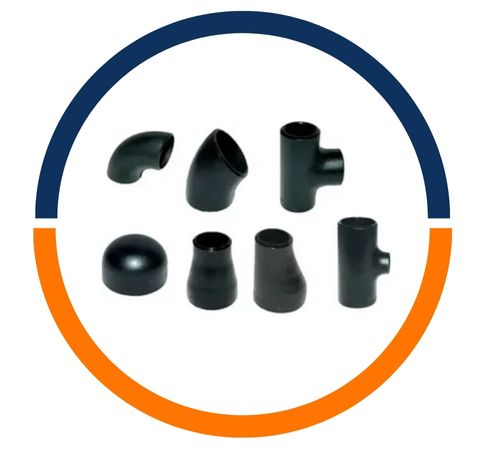

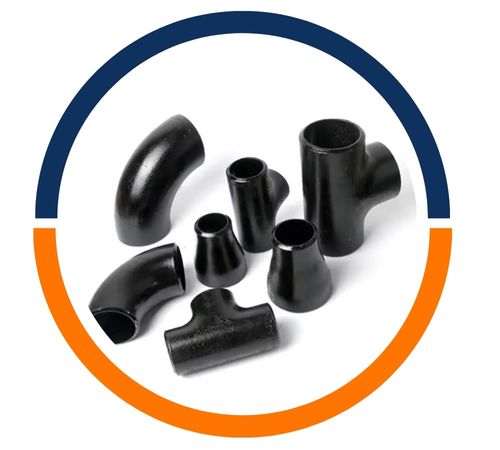

Chetan Steel stands out as a top manufacturer and supplier in Delhi, specializing in high-quality Carbon Steel WPHY 60 Pipe Fittings tailored for demanding pipeline applications. With state-of-the-art manufacturing facilities and rigorous quality control measures, the company ensures that its fittings meet ASTM A860 standards and international specifications. Chetan Steel offers a diverse selection of WPHY 60 fittings, including elbows, tees, reducers, and caps, all designed for high-pressure and high-strength pipeline systems. Catering to industries like oil and gas, petrochemicals, refineries, and power generation, the company is recognized for its consistent quality, competitive pricing, and prompt delivery.
Carbon Steel WPHY 60 Pipe Fittings are crafted from high-strength carbon steel, featuring carefully controlled levels of carbon, manganese, and micro-alloying elements. This specific composition enhances their strength, toughness, and weldability. On the mechanical side, WPHY 60 fittings boast a minimum yield strength of around 60 ksi, along with impressive tensile strength and outstanding impact resistance. They are engineered to endure high internal pressures and external loads. Proper heat treatment guarantees a uniform grain structure, dimensional stability, and dependable performance in challenging service and high-stress pipeline environments.
| Specification: | ASTM A860 WPHY 60 Fittings |
| Schedule: | Schedule 5 TO Schedule XXS. |
| Size: | Normal Pipe Size (NPS) 1⁄₂ to Normal Pipe Size (NPS) 48” |
| Type: | Butt Weld (BW), Seamless (SMLS) Welded |
| Thickness: | Sch 5S, 20S, S10, S20, S30, 10S, S80, S100, S120, STD, 40S, S40, S60, XS, 80S, S140, S160, XXS and etc. |
| Type Of Dimension: | BS1640, EN 10253 – 4, DIN 2605, JIS B2312, ANSI B16.9, MSS SP-75, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2313 |
| Standard | EN, ISO, DIN, JIS, NPT |
| Type | Elbow, Stub End, Bend, Tee, Reducer, Cap, Adapter, Wye, Cross, |
| Connection Type | Threaded/ Clamp End / End Bell / Weld/ Flange/ |
| Pressure-Temperature Class | 150LB, 300LB, 600LB, 1500LB, 2500LB. |
| Grade | C | Mn | S | P | Si | Ni | Cr | Mo | Cu | Ti | V | Cb | Al |
| ASTM A860 WPHY 60 Fittings | 0.20 | 1.00-1.45 | 0.03 | 0.01 | 0.15-0.40 | 0.50 | 0.30 | 0.25 | 0.35 | 0.05 | 0.10 | 0.06 |
| Element | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| ASTM A860 WPHY 60 Fittings | 415 | 515-690 | 28 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| NPS | O.D. | 90 Degree Elbow | 45 Degree Elbow | 180 Degree Return | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter) | (inch) | Center to Face (inch) | Center to Face (inch) | Center to Face (inch) | Radius (inch) | Center to Center (inch) | Back to face (inch) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Chetan Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 60 Pipe Fittings products in Delhi, India. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
Carbon Steel WPHY 60 Pipe Fittings find extensive use in high-pressure transmission pipelines and critical flow systems. They are frequently utilized in oil and gas pipelines, cross-country transmission lines, refineries, and petrochemical facilities. These fittings are also essential in power generation, offshore platforms, and industrial process piping where high strength and reliability are paramount. Their capability to withstand high pressure, temperature fluctuations, and mechanical stress makes them perfect for long-distance pipelines. Additionally, WPHY 60 fittings are designed to meet the rigorous demands of various industrial applications, ensuring safety and efficiency.
